The Most Popular Fishmeal Conveyor Conveying Machine

Short Description:

Working Principle and Feature

In wet fish meal production, the conveying work between each procedure is completed by the screw conveyor.
Its working principle is that the raw material fed from the inlet, the motor drives the screw shaft to rotate through the drive chain, while the vanes continuously push the material forward along with the fixed shell and continuously sends it out from the outlet. The conveyor is mixing and agitating the materials at the same time conveying, which is very beneficial to the fish meal production.

Product Detail

Product Tags

The main Feature:

1) Simple and compact structure, small cross section, easy installation.
2) Reliable performance, easy for maintenance.
3) The shell is full closed design, so as to realize the closed transportation, and to reduce the impact of materials on the working environment.
4) Flexible working arrangement during the transportation of materials.

Horizontal Screw Conveyor(One Screw / Double Screw)
Application occasion and function:

  • Apply to locate at the bottom of fish pond, can store some quantity raw fish, can adjust the rotating speed to make sure continuously and evenly feeding.

Normal Model: Ø350, Ø300*2

The Most Popular Fishmeal Conveyor Conveying Machine (8)

Pre-Press Conveyor
Application occasion and function:

  • Apply to the connection between Cooker and Screw Press, while conveying, it can press out some oil and water in the raw fish, and increase pressing effect of Screw Press. It has obvious effect for the raw fish, which has high oil & water content.

Normal Model: YYJØ300

The Most Popular Fishmeal Conveyor Conveying Machine (1)

Air-Cooling Conveyor
Application occasion and function:

  • Apply to the connection after Drier, it can remove some steam vapor, which mix in the fishmeal with high temperature after Direr, with good cooling effect.

Normal Model: Ø300, Ø400

The Most Popular Fishmeal Conveyor Conveying Machine (3)

Scraper Conveyor
Application occasion and function:

  • Apply to conveying the finished fishmeal, especially suitable for long distance conveying.

Normal Model: GBJ-250, GBJ-400

Scraper-Conveyor

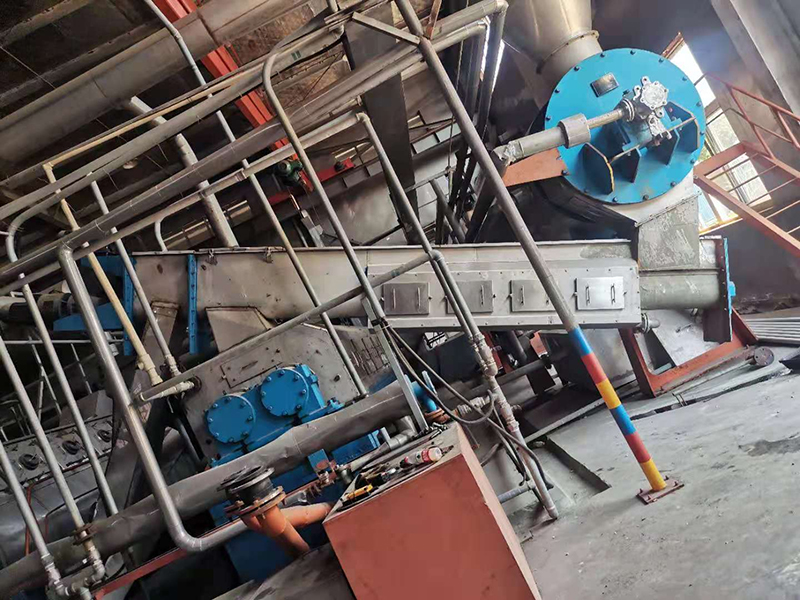

Installation collection

singleimgsfd489f (1)singleimgsfd489f (2)The Most Popular Fishmeal Conveyor Conveying Machine (4) The Most Popular Fishmeal Conveyor Conveying Machine (5) The Most Popular Fishmeal Conveyor Conveying Machine (6) The Most Popular Fishmeal Conveyor Conveying Machine (7)
